ScanChainECO Datasheet


ScanChainECO utilizes an innovative algorithm to assist design teams in efficiently accomplishing scan chain fixing tasks and minimizing test coverage loss resulting from functional ECO.  Based on user’s design changes, ScanChainECO modifies the original scan chain netlist to

create a revised netlist that accommodates the updated logic function.

Solution Benefits


•  Offering short turnaround time for designs of all sizes and


•  Ease of use and optimized patch for optimal scan chain results

• A Plug-and-Play tool easily integrated with 3rd-party design flow

Introduction to Scan Chain Fixing

Scan chain fixing is a critical step during functional ECO (Engineering Change Order), which is an incremental design method used to revise existing ASIC designs.  Once the RTL code is revised to change the ASIC function, the ECO process modifies a portion of the existing netlist to align with the revised ASIC function while preserving the integrity of most of the netlist.  ScanChainECO adds scan DFFs to newly added registers in the revised design and creates scan chains to maintain test coverage.

Traditionally, DFT engineers must mitigate the scan chain loopholes created during a functional ECO task.  Since scan chains

and test patterns are typically generated

by ATPG tools, DFT engineers often lack

an effective way to make necessary

modifications based on the changes

reported in the ECO patch.  They either

recreate both the scan chains and test

patterns, which leads to a complete waste

of previous design efforts, or choose to

ignore the newly added flip-flops,

resulting in reduced test coverage.

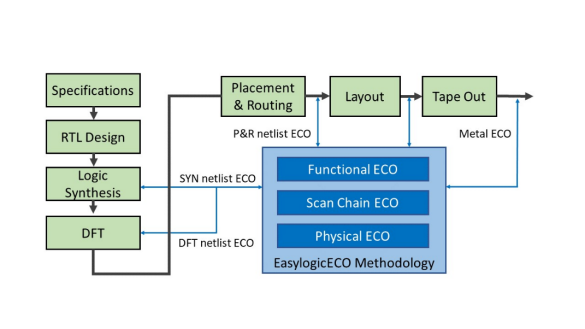

                        Figure 1: Scan chain fixing needs across design phases

ScanChainECO empowers designers to efficiently perform scan chain fixing tasks in response to the changes made to registers or flip-flops within the design logic.

ScanChainECO Design Flow


The scan chain fixing process begins with a precise analysis of the original scan chain netlist and the necessary changes.  ScanChainECO then modifies the scan chains according to user’s design constraints. It seamlessly integrates with user’s existing ASIC design tools, creating a complementary flow for efficient collaboration.


The figure on the left illustrates the ScanChainECO tool

flow, where:


1. The input for scan chain FFs can either be the ECO

report generated by a 3rd-party ECO tool or a list created manually by the user for a specific ECO case.


2. The ECO scan chain represents the result of the

modifications made to the original scan chain netlist.

ScanChainECO Features

SDFF Selection and Conversion

Converts regular DFFs into appropriate SDFFs

that need to be inserted into the scan chain.


ScanChain Stitching, Removal and


Stitches SDFFs into the original scan chain

while disconnecting unnecessary SDFFs.

Customizes the chain length based on user’s

DFT constraints to meet the requirements of

the test plan, enabling increased test coverage

without compromising testing costs.


Support for Advanced Design Requirements

Ensures compliance with design rules while

implementing scan chain revisions.  Identifies

multi-clock domains, multi-power domains, and

hold time violations and applies necessary

adjustments, such as isolation/level shifter cells

or lockup latches.


Physical-Aware ECO Algorithm

Utilizes the physical information provided by the

     user to enhance the timing of the scan chain.


     Multiple Types of Post-Mask ECO Resource

     Resource options for a post-mask ECO task include

     spare cells, gate arrays, and filler cells.  When

     combined with physical information, optimizes the

     delay of scan chains by considering cell function

     and estimated wire delay.


     Versatile Design Flow Support

     Supports various ECO flows for introducing changes

     of FFs, including 3rd-party ECO flow, manual ECO

     flow, and EasylogicECO flow. It utilizes standard

     formats for input/output data, enabling seamless

     integration with mainstream design flow.


     Command Line Script Operations

     Script-based operation is simple, easy to learn and

     debug.  It only requires modifying specific script fields

     when migrating to other projects.
